The Air Sponge™ dehumidifier from Williams is designed to work with your central cooling system and it's ductwork, maintaining a desired humidity level throughout your entire home, office or wherever you choose to use it. Unlike noisy, portable dehumidifiers that only serve a limited range, the Air Sponge™ dehumidifier is a total space solution designed to control excess moisture in every area of your indoor environment.
Humidity is critical to room comfort because it directly impacts the body's natural ability to regulate temperature. Industry experts have determined that relative humidity levels between 30% and 60% are ideal for indoor environments. While a room's actual temperature may be considered acceptable, we tend to feel sticky or warm if the relative humidity is too high. Even worse, excess humidity doesn't just affect how we feel. It can promote the growth of mold and mildew; which over time can have negative effects on furnishings, fabrics, and carpets... even our health. Aside from comfort, dust mites can also breed in conditions of high humidity. And nobody wants that! With the Air Sponge™ dehumidifier from Williams, you get maximum control of excess indoor moisture, every moment of every day.
Williams Air Sponge™ Product Features:
The Williams Air Sponge™ offers a combination of benefits the others just don't have. See the Consumer Brochure below for more features.
- Enhances room comfort
- Protects your home and furnishings
- Guards against mold and other contaminants
- Huge 130-pint capacity per day means optimum humidity control
- Operates with your central cooling system or as a stand-alone unit
- Operates automatically
- Provides effective, efficient dehumidification
- Simple to install using existing ductwork
- Warranty: 5-year compressor, 1-year on parts

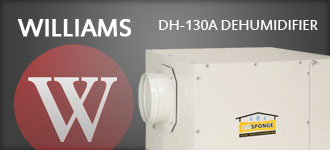

Below you'll find the basic specifications on the DH-130A dehumidifier. A full list of specs and unit dimensions can be found in the Installation & Owner's Manual below.
- Capacity: 130 pints per 24 hours @ 80°F DBT/60% RH
- Power Supply: 115V 60 Hz, single phase, 15 amp dedicated circuit
- Compressor: Rotary, 1070 Watts, 9.5 RLA, 61 LRA
- Fan Motor: 1/10 HP, 1.15 FLA
- Air Flow (CFM): 400 @ .6" W.C. E.S.P.
- Inlet Air Operating Cond.: 40°F - 105°F
- Filter: Washable nylon mesh, 17" x 23.5"
- Cabinet Insulation: EPE material, 1" thick, R-value 4.5
- Duct Connections: 8" diameter (inlet and outlet)
- Condensate Drain: 1/2" O.D.
- Weight: 150 pounds (lbs.)
- Dimensions: 20-1/2"H (cabinet only: 19"H) x 25-1/4"W x 30"L (cabinet only: 24"L)
Recommended Accessories for this Product:
Make installation a snap and add additional functionality with these recommended accessories.
- HD14 - Hanger Kit (includes 4 brackets and 4 isolators)
- HD16 - Wall-Mounted Dehumidistat Control
- HD17 - Dehumidifier Drain Installation Kit
